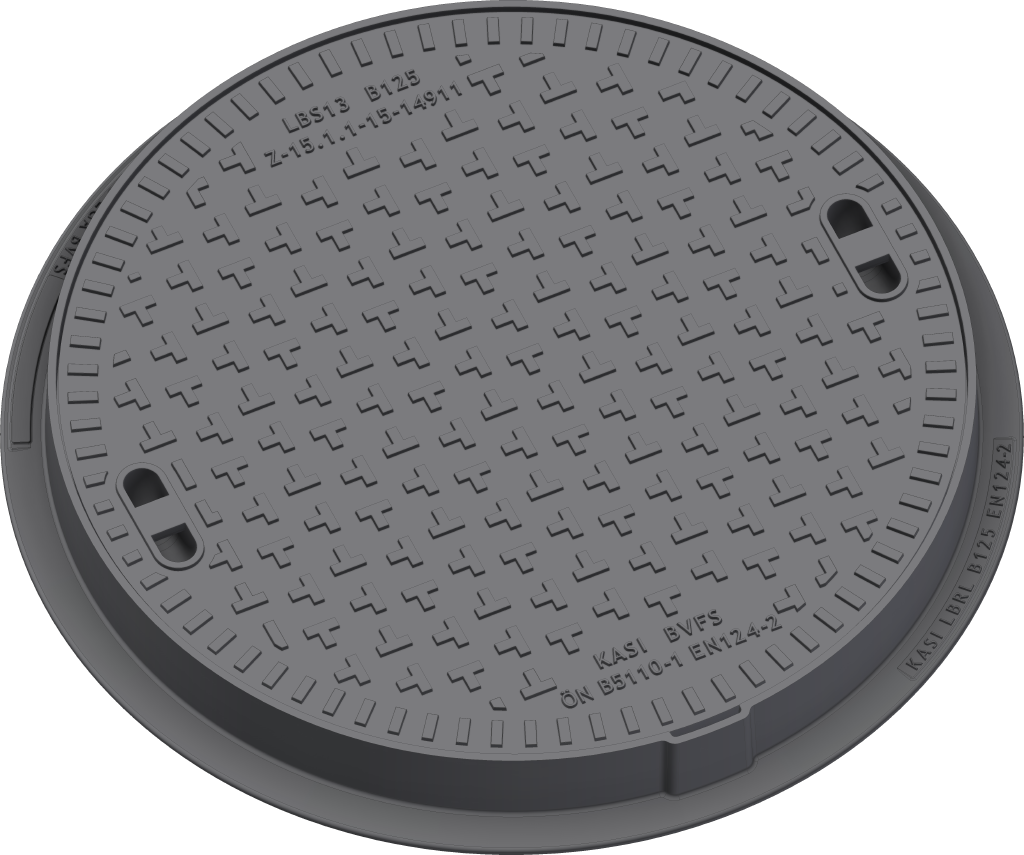

Manhole cover without ventilation in a cast iron frame with foot
B125 - parking areas for passenger vehicles
| Code | KBLG03 |
| Material | Cast iron |
| Weight | 35 kg |
| Norm | EN124-2 |
| Package | 20 ks/pal |
cover without hinge, with horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Cast iron without venting with anti-slip design.
- Custom theme/logo option
- Lid weight 23kg
Frame
- Frame height 70 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- custom lid motif possible
Customer solutions
Damping insert
