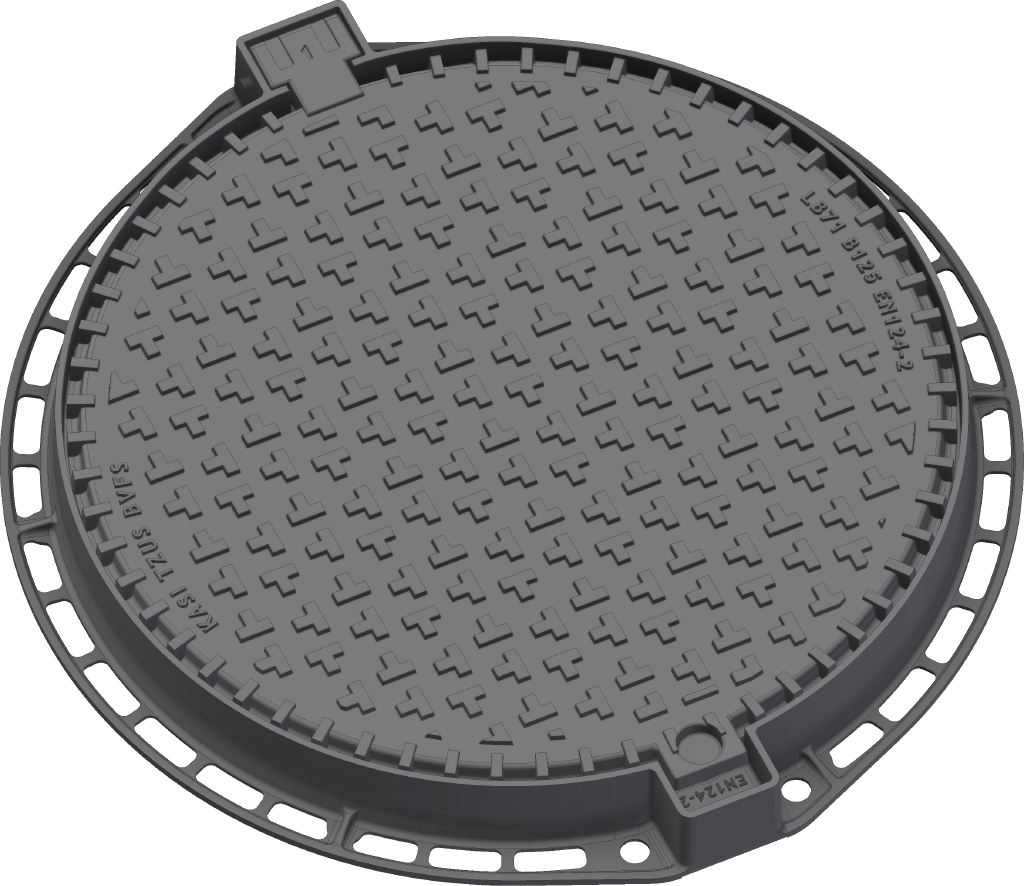

Manhole cover without ventilation in cast iron frame with foot

B125 - parking areas for passenger vehicles

Code	KBL71
Material	Cast iron
Weight	33 kg
Norm	EN124-2
Package	20 ks/pal

Poklop EUROPA 7 s pantem, víko litina bez ventilace s uzavřeným pantem, bez pružinového zajištění víka v rámu, B125, rám litina patkový v.70mm bez osazení pro lapač,

Cover

Machined lid seating surface to 0.3mm
Cast iron without venting with anti-slip design.
Hinge secured against removal from the frame
Safety lock at 90?
Custom theme/logo option

Frame

Cast iron frame with foot without shoulder for trap
Frame height 70 mm
Use with BAR-V and BAR adjustment rings

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Lid safety lock at 90?
custom lid motif possible
