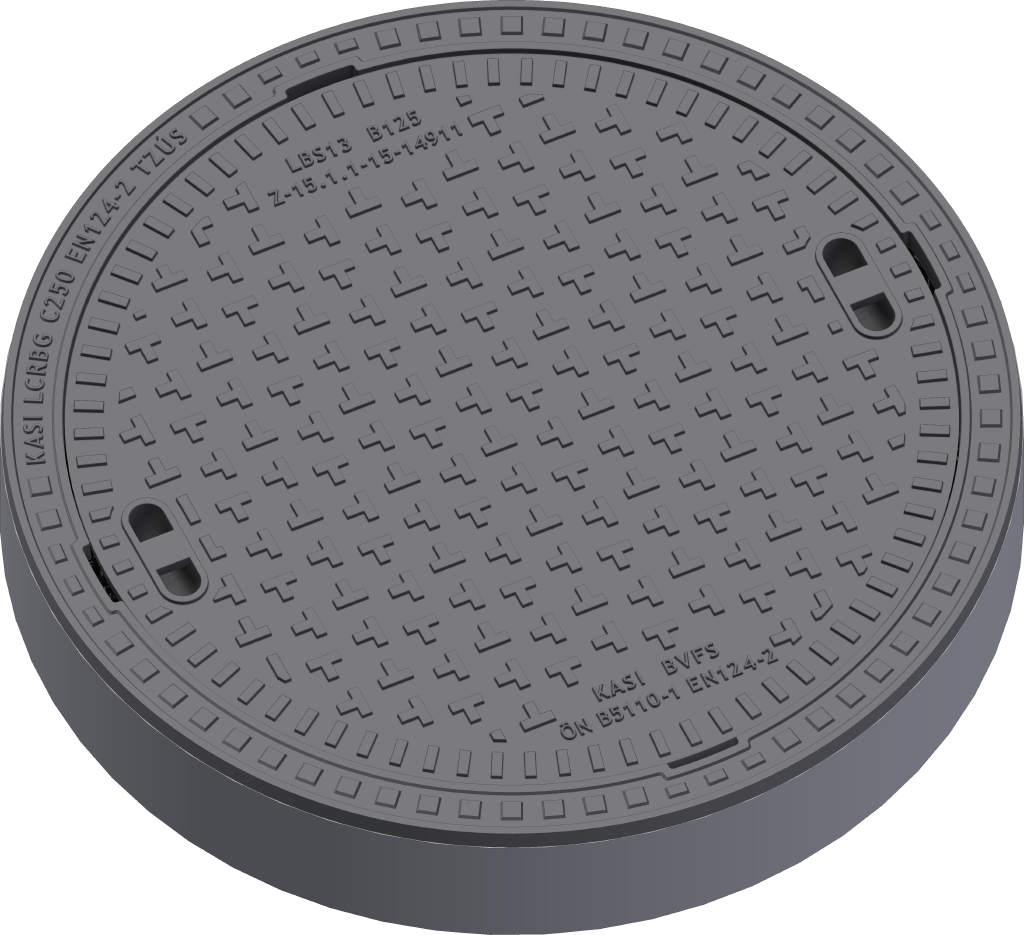

Manhole cover without ventilation in a cast-iron concrete frame
B125 - parking areas for passenger vehicles
| Code | KBBG03 |
| Material | Concrete, Cast iron |
| Weight | 69 kg |
| Norm | EN124-2 |
| Package | 12 ks/pal |
cover without hinge, with horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Cast iron without venting with anti-slip design.
- Custom theme/logo option
- Lid weight 23kg
Frame
- Frame height 125 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- custom lid motif possible
Customer solutions
Damping insert
