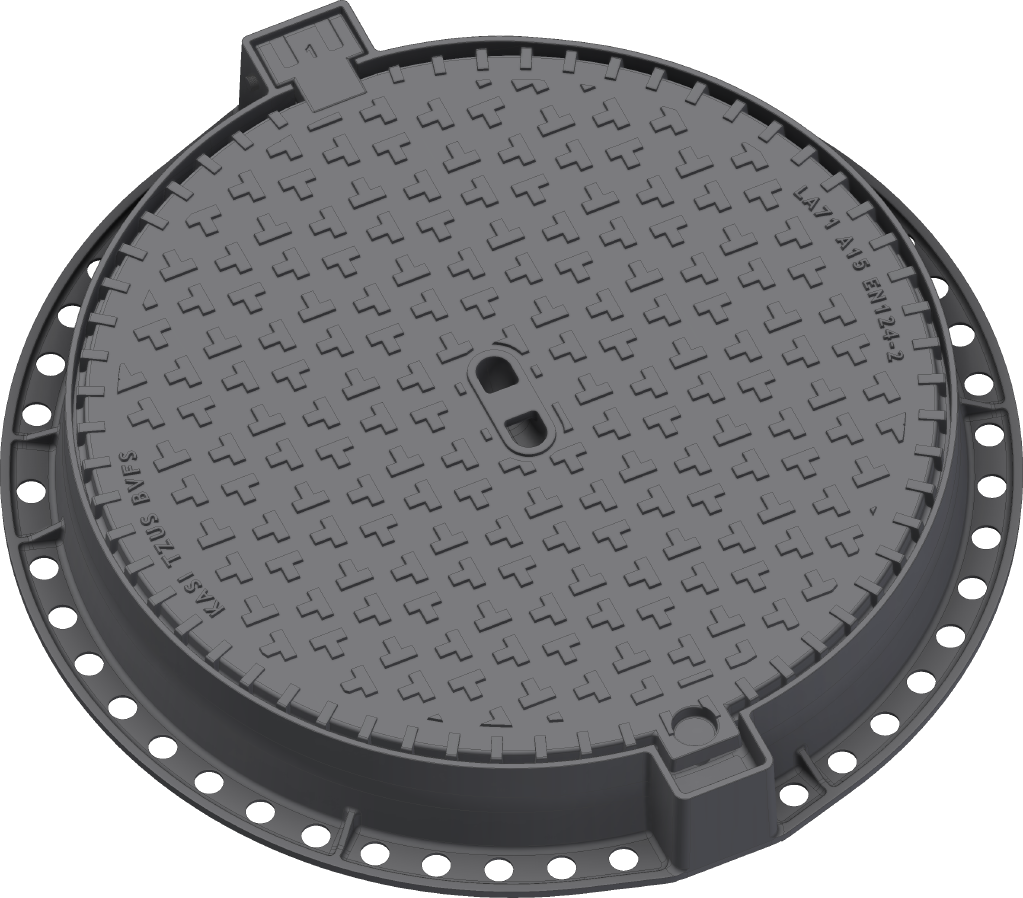

Manhole cover without ventilation in cast iron frame with foot

A15 - pedestrian zones and non-traffic areas

Code	KALL71
Material	Cast iron
Weight	35 kg
Norm	EN124-2
Package	20 ks/pal

Poklop EUROPA 7 s pantem, víko litina bez ventilace s uzavřeným pantem, bez pružinového zajištění víka v rámu, A15, rám litina patkový v.100mm bez osazení pro lapač, s mušlí

Cover

Cast iron without ventilation with anti-slip design
Machined lid seating surface to 0.3mm
Hinge secured against removal from the frame
Safety lock at 90?
Lid weight 18kg

Frame

Cast iron frame with foot without shoulder for trap
Frame height 100 mm
Use with BAR-V and BAR adjustment rings

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
added lid opening - pocket for crowbar
Lid safety lock at 90?
Custom lid motif not possible
