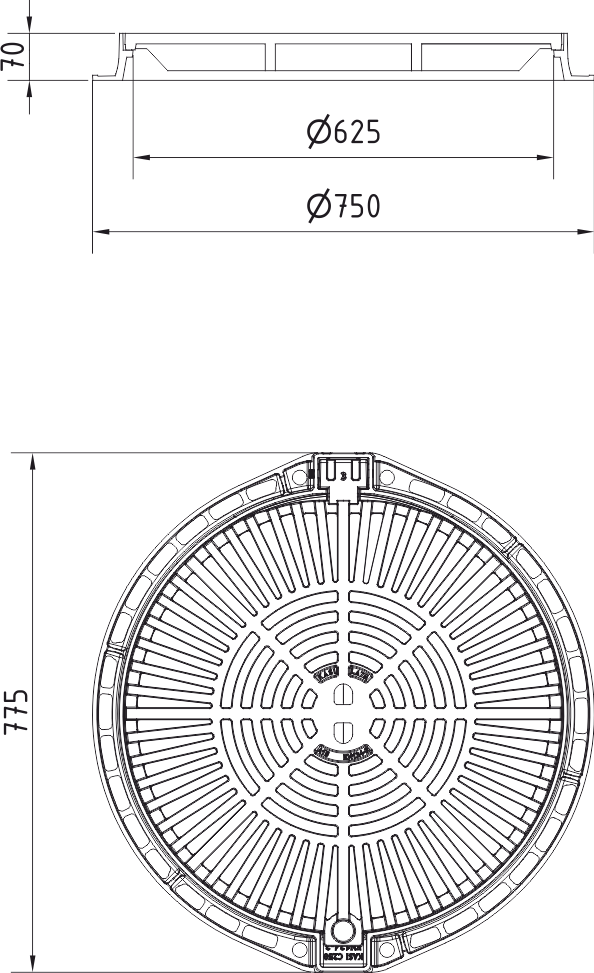

Manhole cover without ventilation in cast iron frame with foot
A15 - pedestrian zones and non-traffic areas
| Code | KAL7N |
| Material | Cast iron |
| Weight | 26 kg |
| Norm | EN124-2 |
| Package | 30 ks/pal |
Poklop EUROPA 7 s pantem, víko litina kruhová vtoková mříž s otevřeným pantem, bez pružinového zajištění víka v rámu, A15, rám litina patkový v.70mm bez osazení pro lapač, s mušlí
Cover
- Machined lid seating surface to 0.3mm
- Hinge with possibility of removal from the frame
- Safety lock at 90?
- Lid weight 15kg
Frame
- Cast iron frame with foot without shoulder for trap
- Frame height 70 mm
- Use with BAR-V and BAR adjustment rings
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Option of screw locking
- Lid safety lock at 90?
Customer solutions
Max. opening angle
