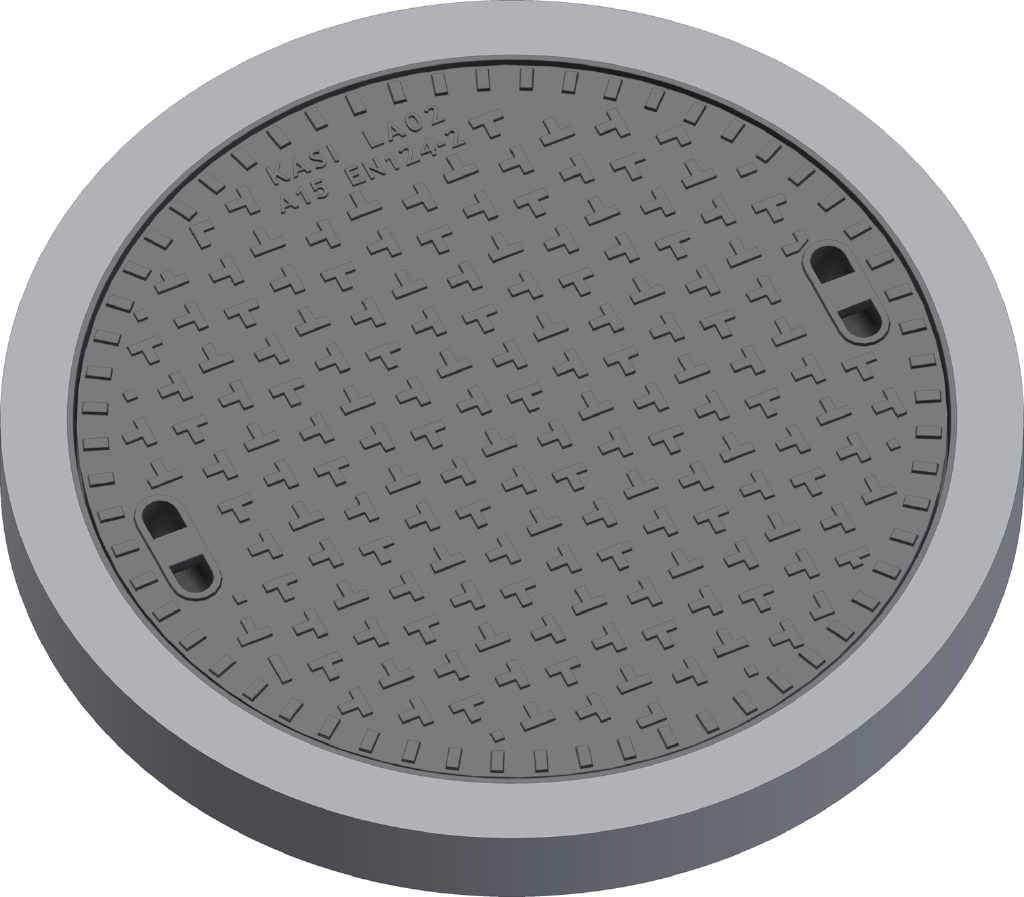

Manhole cover without ventilation in a cast-iron concrete frame
A15 - pedestrian zones and non-traffic areas
| Code | KAB02 |
| Material | Concrete, Cast iron |
| Weight | 50 kg |
| Norm | EN124-2 |
| Package | 16 ks/pal |
cover A15, without hinge, without shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Cast iron without venting with anti-slip design.
- Lid weight 19kg
Frame
- Cast-concrete frame without mounting for the trap
- Frame height 75mm
- Use with BAR-V and BAR adjustment rings
Other
- The cover is supplied without surface treatment - painted variants can be ordered
