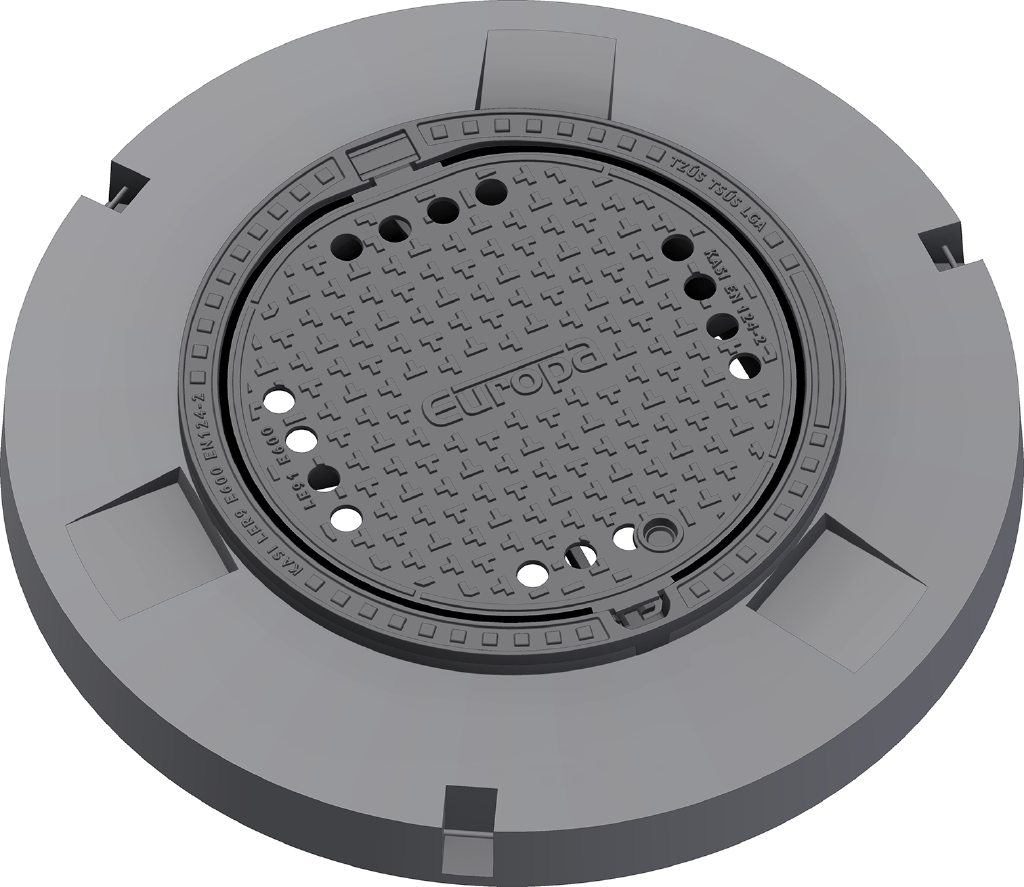

Manhole cover with ventilation in the distribution frame
E600 - areas exposed to high loads from heavy machinery
| Code | AKEG92 |
| Material | Concrete, Cast iron |
| Weight | 334 kg |
| Package | 5 ks/pal |
| Load class | Extreme traffic load |
cover with hinge, KASI PUR vertical and horizontal shock-absorbing lining on lid, with spring-loaded lid locking in frame
Cover
- Integrated KASI-PUR damping insert with high resistance
- Cast iron with ventilation and anti-slip design.
- Hinge secured against removal from the frame
- Safety lock at 90?
- Lid weight 45kg
Frame
- Distribution frame 1200mm without mounting for catcher
- Frame height 200 mm
- Machined frame contact surface to 0.1mm
- Use with BAR-V and BAR adjustment rings
- Three handling hinges
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Option of screw locking
- Suitable for places with extreme traffic load
- Lid safety lock at 90?
- custom lid motif possible
Customer solutions
Damping insert
Max. opening angle
Anti-theft protection
