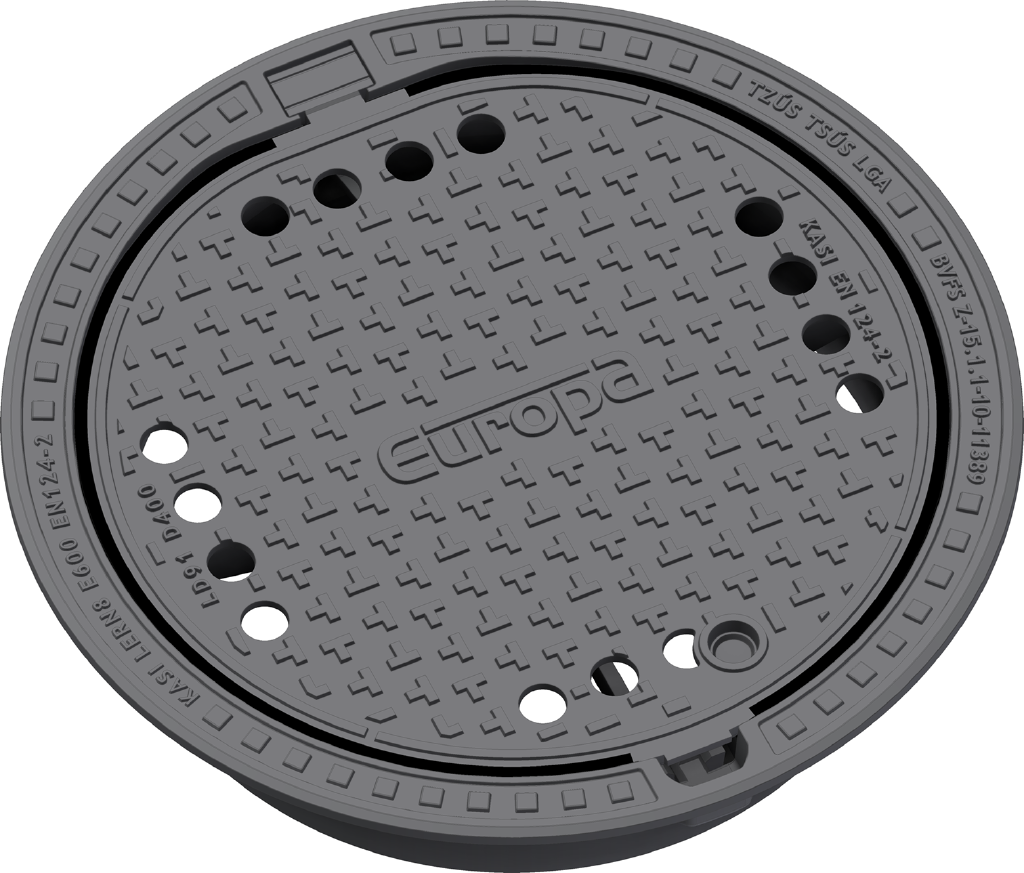

Manhole cover with ventilation in a self-leveling frame
D400 - heavy traffic load
| Code | AKDN92 |
| Material | Cast iron |
| Weight | 73 kg |
| Package | 14 ks/pal |
| Load class | Heavy traffic load |
cover D400 with hinge, KASI PUR shock-absorbing lining, spring-loaded lid locking in frame
Cover
- Integrated KASI-PUR damping insert with high resistance
- Cast iron with ventilation and anti-slip design.
- Hinge secured against removal from the frame
- Safety lock at 90?
- Lid weight 41kg
Frame
- Self-leveling frame with mounting for trap
- Frame height 180 mm
- Machined frame contact surface to 0.1mm
- Use with BAR-V and BAR adjustment rings
- Installation without guide ring - the frame can be inserted directly into the shaft
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Option of screw locking
- Suitable for places with high traffic load
- Lid safety lock at 90?
- custom lid motif possible
Customer solutions
Damping insert
Max. opening angle
Anti-theft protection
